Kit Homes Standard Inclusions (All designs)

“The Eirene 1, 2 and 3 Bedroom Homes”

Our new model Flat Packed 1, 2 and 3 bedroom Steel Frame Kit Homes.Includes All Finish Materials, GST and Shipping into your nearest Port – Australia wide.
1 bedroom designs are suitable for caravan and cabin parks.

2 Bedroom Dimensions:

5670mm Width x 10450mm Length x 3300mm Height
TOTAL Area = 60m2 (Inc. Verandah)

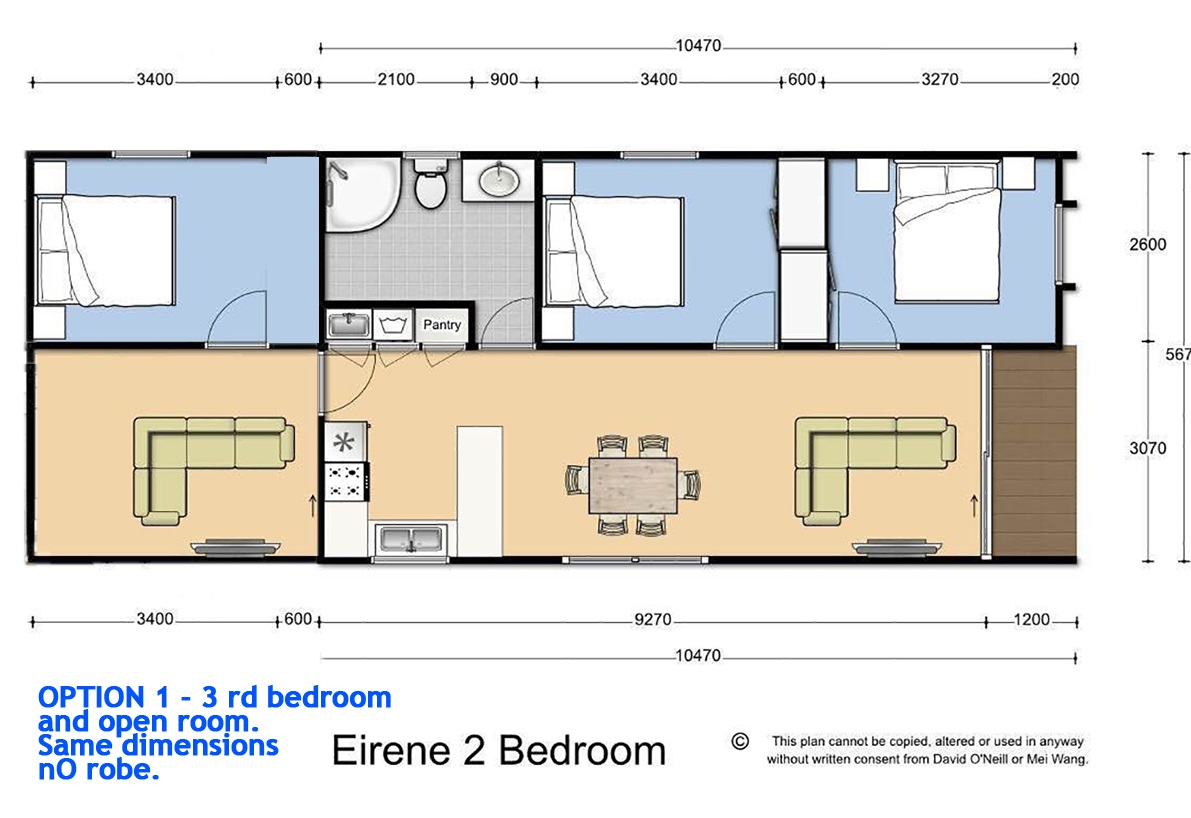

(We can make this home longer or wider to incorporate a third bedroom with additional family room, living space or outdoor alfresco)

Inclusions:

Electronic:

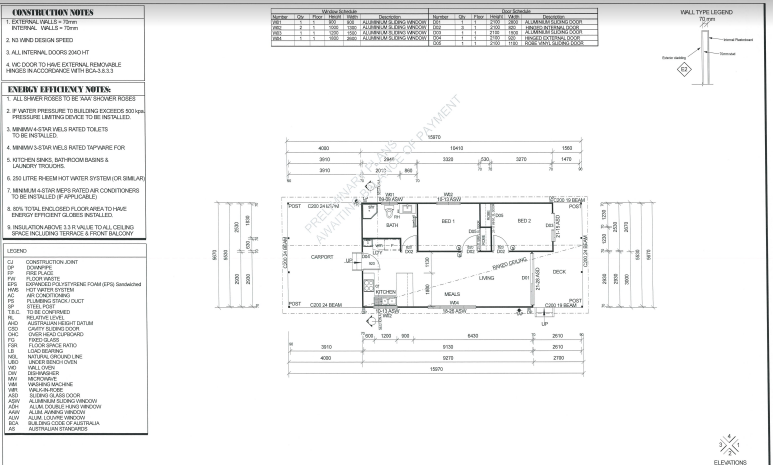

1 Set of Certified Building Plans (Working Drawings)
1 Set Specifications
1 Energy Assessment

Framing:

Ring Steel 180mm C-Section Sub Floor Galvanised.
Raked Ceilings 100mm C-Section Rafters Over Living Area.
Roof Trusses Over Bedrooms.
89mm C-Section Light Steel Frame Walls.

External Wall Cladding:

32mm fireproof Calcium Silicate Sandwich Panels.
Finish: Texture Paint render (Standard).
Fibre Cement Weather Boards to Feature Wall.

Optional;

CSR Cemintel Panels (as Selected) or Combination of Corrugated Colour Bond,
Mini Orb and Fibre Cement Sheet Rendered.

Roofing – Skillion Roof:

Colorbond tray deck 50mm Insulated Sandwich Panels
Colour Bond Facia, Gutters & Barge Moulds.
Skillion Roof Capping.

Windows:

Aluminium Plain Sliding Double Glazed

External Doors:

Aluminium Plain Sliding Double Doors, Double Glazed
Rear Door – Steel lined wood finish Fire Door

Internal Walls:

89mm Light Steel Framing – as per Plan.

Insulation:

Walls R2.0 Bulk insulation – Purchased Locally.
Roof R2.0 Bulk Insulation – Purchased Locally.

Skirting and Architraves:

67mm MDF Colonial Profile – Purchased Locally.

Internal Lining:

10mm Gyprock Green or Blue board in Wet areas – Purchased Locally.
55mm Cornice- Purchased Locally.

Robes:

One shelf and Hanging Rail Chrome
Flush Panel Doors – Purchased Locally.

Electrical Fittings:

Power Board Incl Circuit Breakers
Power Points and Light Switches
1.5mm Light Cable and 2.5mm GPO Cable and 6mm Mains Cable
Fluorescent Light Fittings.

Kitchen:

Caesar Stone Benchtop on 2 Pac High Gloss Laminated Cabinets, Soft closing Doors and Drawers,
1.5 Bowl sink Inc. flick Mixer.

Internal Doors & Jambs:

6 Panel Colonial Pre-Primed, Pre Hung Doors – Purchased Locally.
MDF Door Jambs – Purchased Locally,

Internal Flooring:

Yellow tongue (Standard)
Fibre cement sheeting to wet areas.

Optional:

Red Tongue or similar in Wet areas – Purchased Locally for Additional cost

Internal Floor Coverings:

Carpet to Bedrooms – Purchased Local (Not Included in Price)
Timber laminate floating floor to Living Areas.

Optional:

100% highest grade polished solid bamboo floating floor. POA

Bathroom:

Shower Room or Fitted Shower – installed Locally.
Toilet: Dual Flush Water Mark 4 Star.
Vanity Cabinet including Bowl and Flick mixer.
Mirror & Towel Rack.
Floor Tiles.

Plumbing:

Hot and Cold Rough-In Pipes & Fittings
Gutters and Downpipes

Verandah:

PVC Composite Decking.

Hardware:

Blind Rivets, Self-tapping Screws and Bolts, M10,12,16 Bolts,
Silicon sealers.

External Cladding (Optional Extra): POA

Brick Veneer
Pine Weather Boards
Cedar Weather Boards
PVC Weather Boards
Feature Concrete 1220mm Sheets
Cemintel Feature Claddings CSR as selected
Delivery will be arranged according to your site location.
